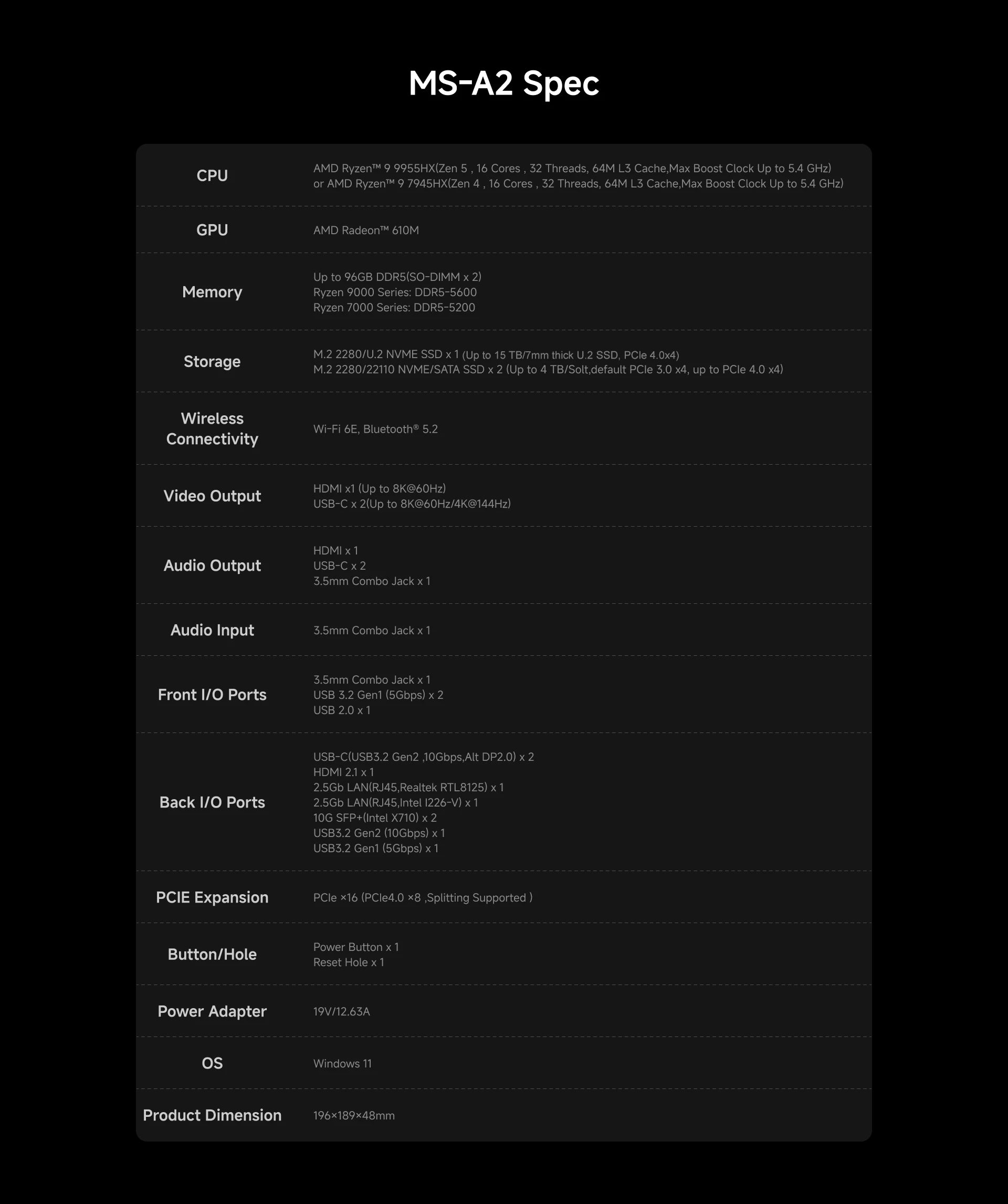

SPECIFICATIONS

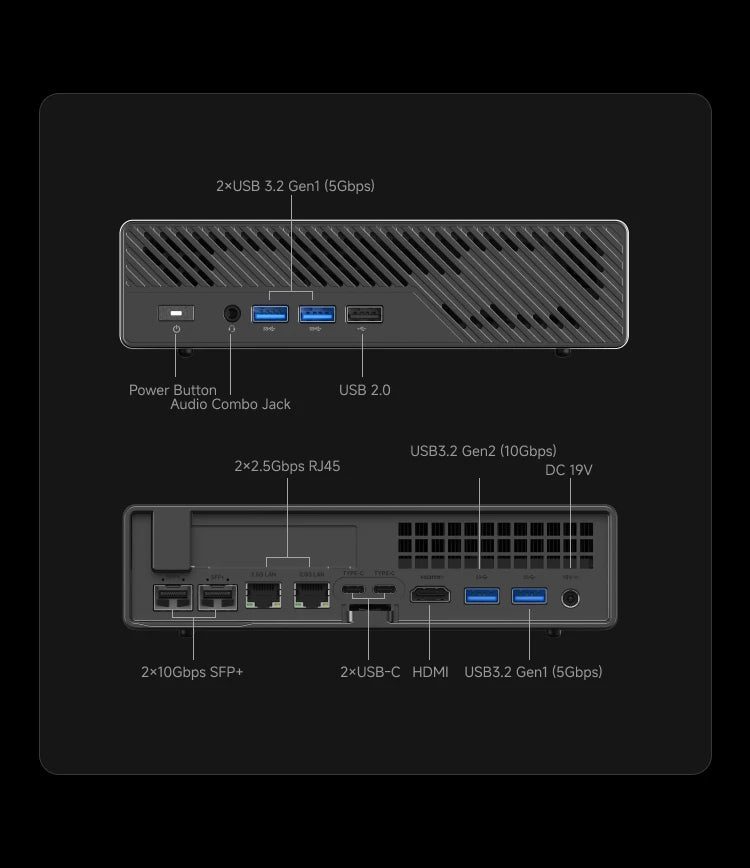

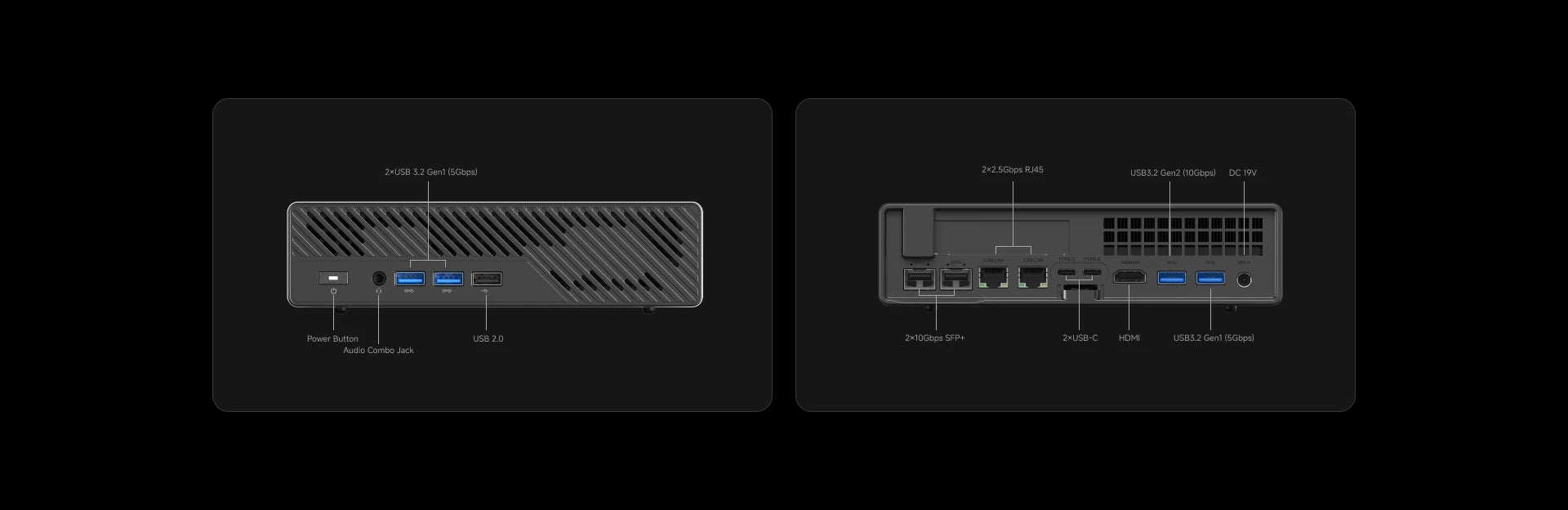

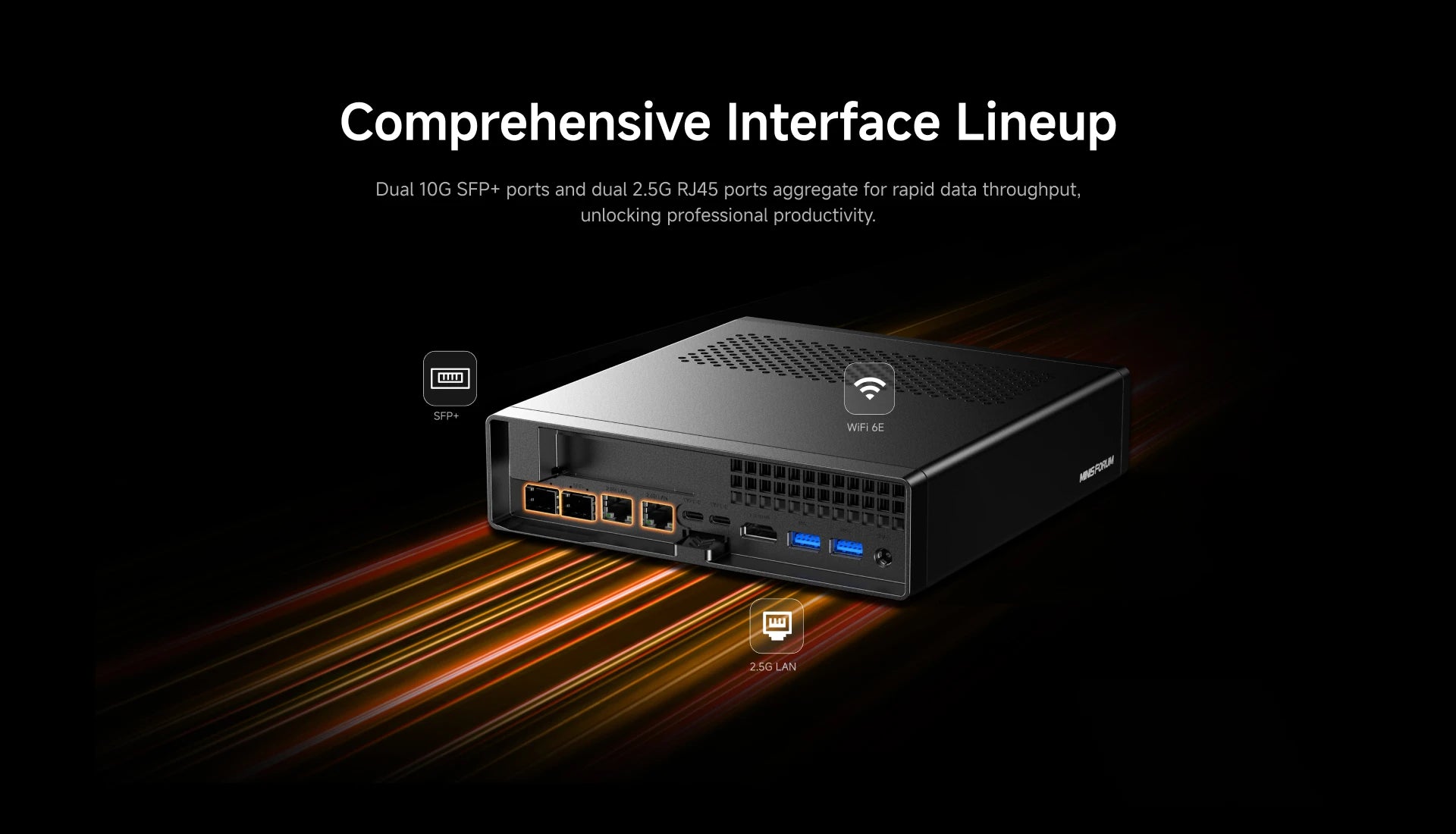

Audio Input: Type-C(USB3.2 Gen2 10Gbps)(Alt DP2.0) x2;HDMI2.1 x1;2.5 LAN(RJ45)(Intel RTL8125) x1;2.5 LAN(RJ45)(Intel I226-V) x1;10G SFP+(Intel X710) x2;USB Type A(USB3.2 Gen2) x1;USB Type A(USB3.2 Gen1) x1

Audio Output: HDMI x1;Type-C x2;3.5mm Combo Jack 4 in 1 x1

Brand Name: MINIS FORUM

Button/Hole/LED: Power Button With LED(White) x1;Reset Hole x1

CPU: AMD Ryzen 9 9955HX(16 Cores/32 Threads,Zen 5,Max 5.4GHz),AMD Ryzen 7 7945HX(16 Cores/32 Threads,Zen 4,Max 5.4GHz)

Certification: CE,FCC,RoHS

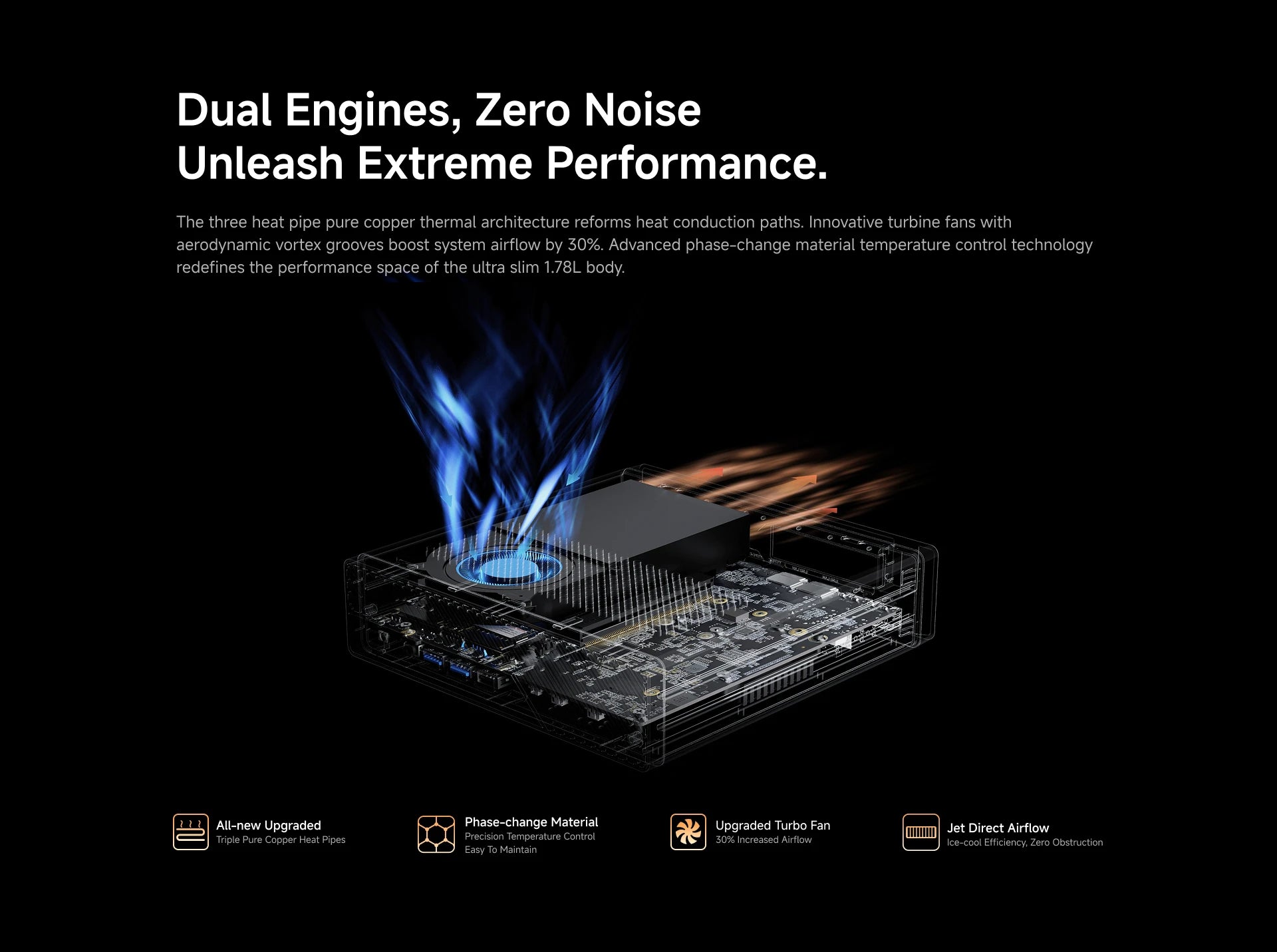

Fan: FAN For CPU x1(12V);FAN For SSD x1(5V);FAN For SSD x1(5V)

GPU: AMD Radeon 610M

Graphics Card Type: Integrated Card

Hard Drive Capacity: 1TB

Hign-concerned Chemical: None

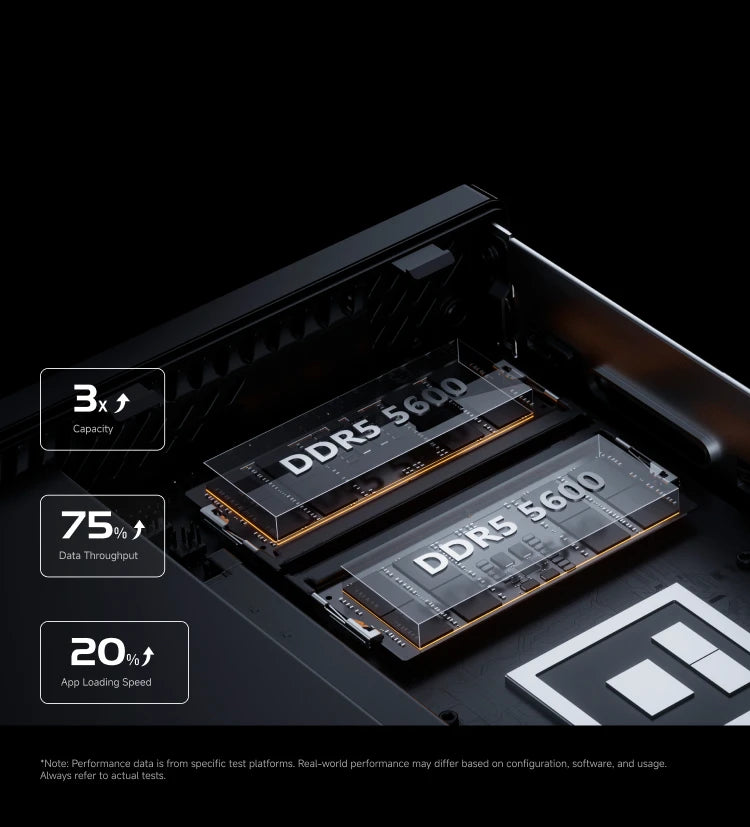

Memory: Up to 96GB DDR5 (SO-DIMM x2)

Memory Capacity: 32GB

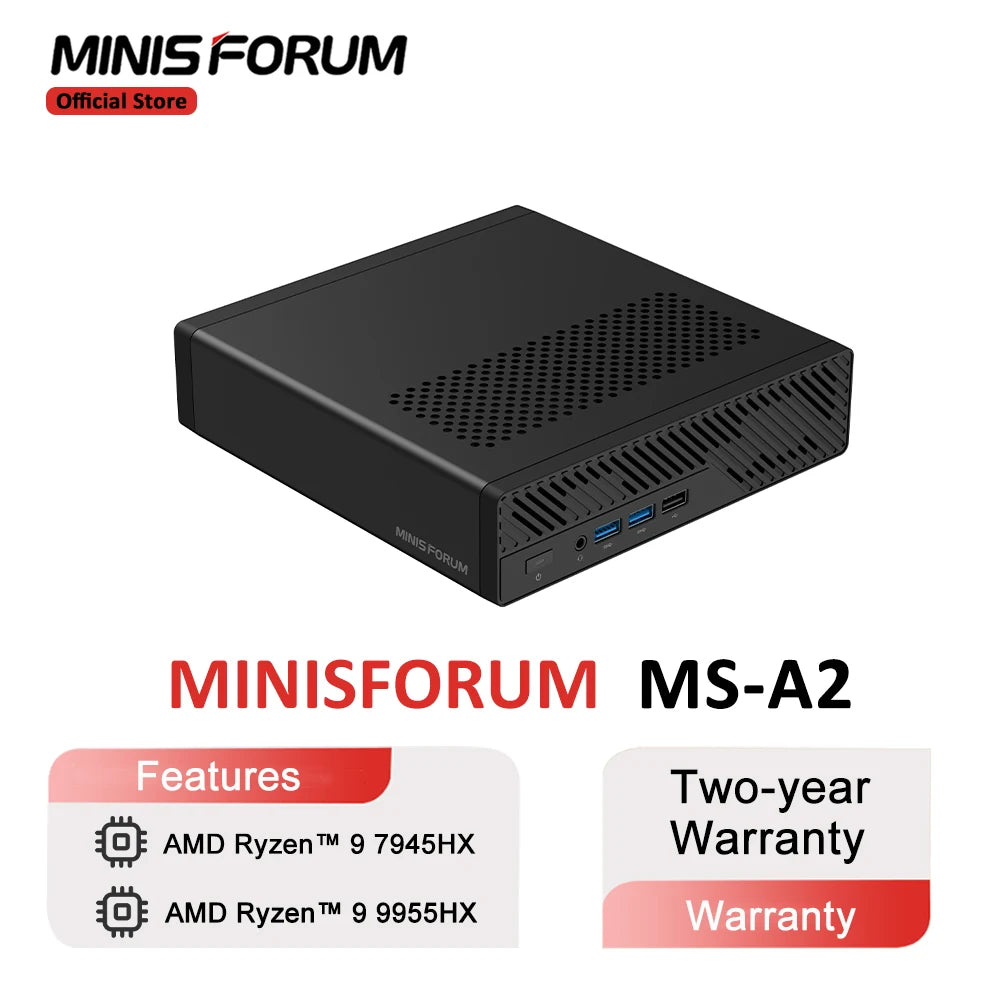

Model Number: MS-A2

Origin: Mainland China

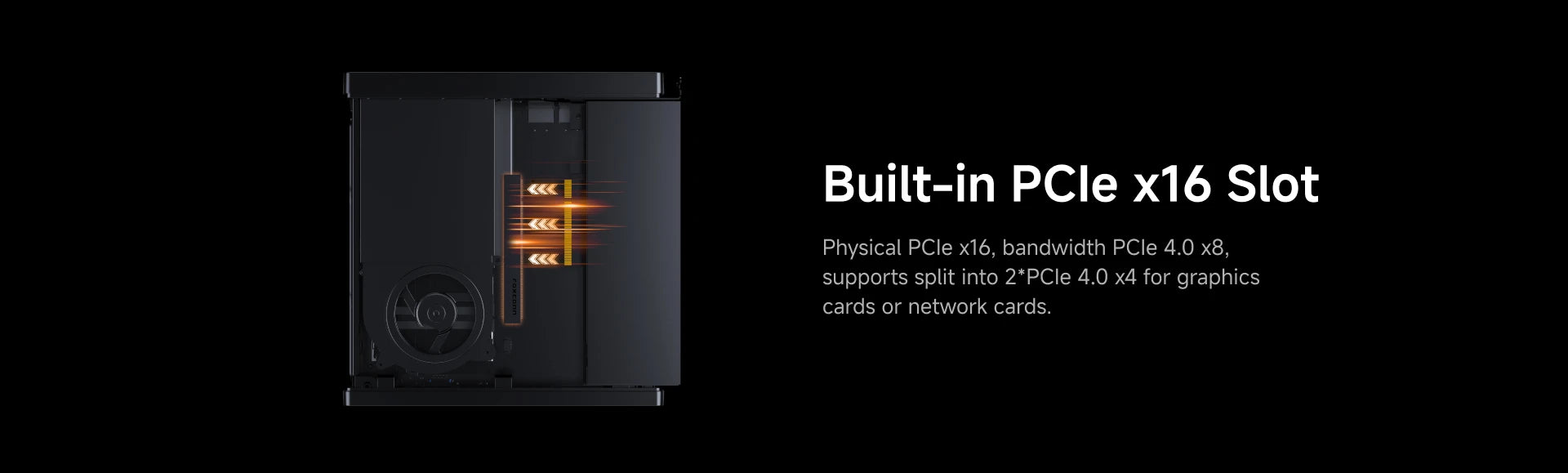

PCIE Expansion: PCIE x16 (PCIE4.0 x8)

Power Adapter: 19V/12.63A

Processor Brand: AMD

Processor Main Frequency: 5.4

Processor Model: AMD Ryzen 9 9955HX

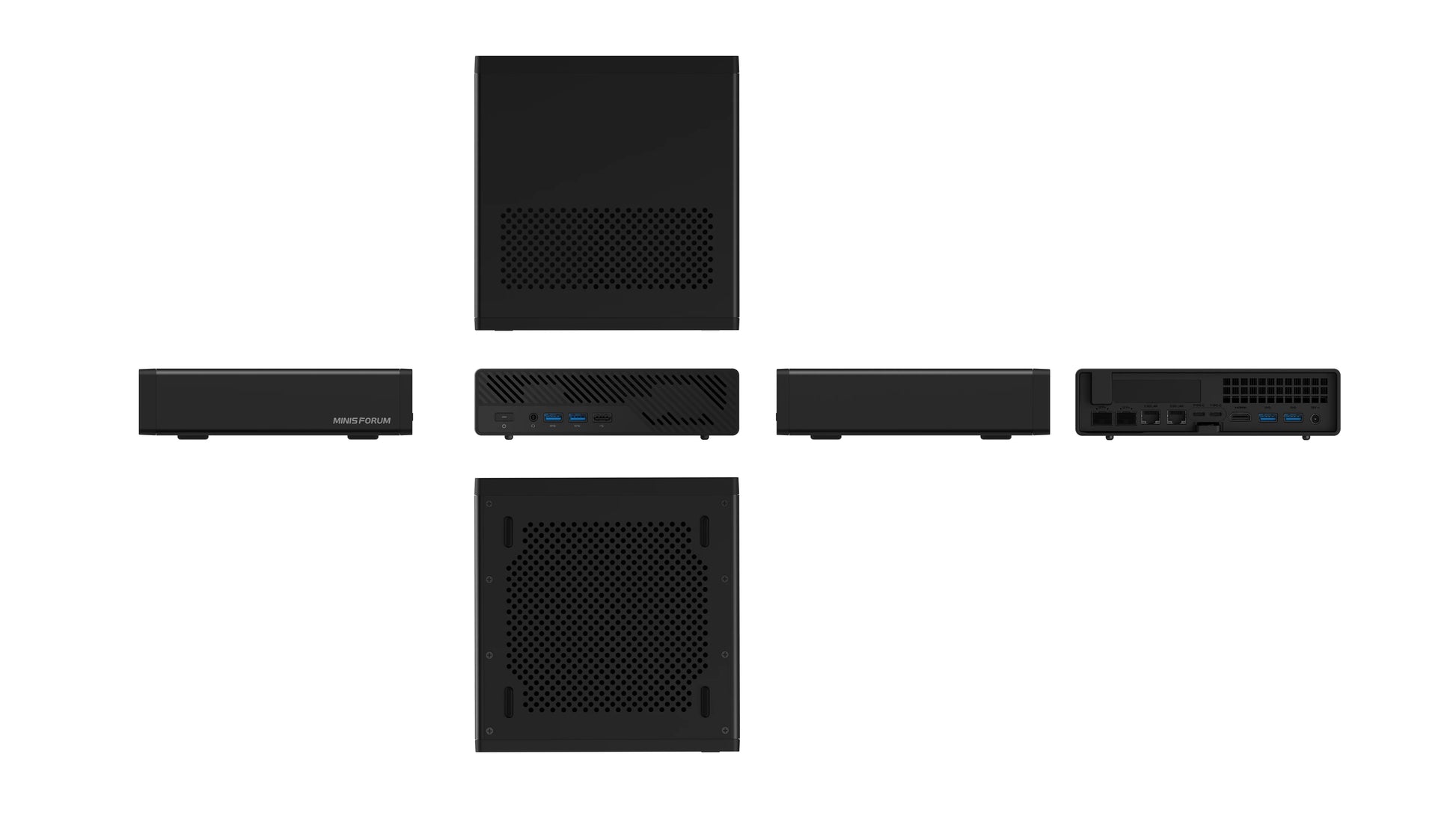

Product Dimension: 196 x 189 x 48mm

Ryzen 7000 Series: DDR5(SO-DIMM x2),up to 5200Mhz

Ryzen 9000 Series: DDR5(SO-DIMM x2),up to 5600Mhz

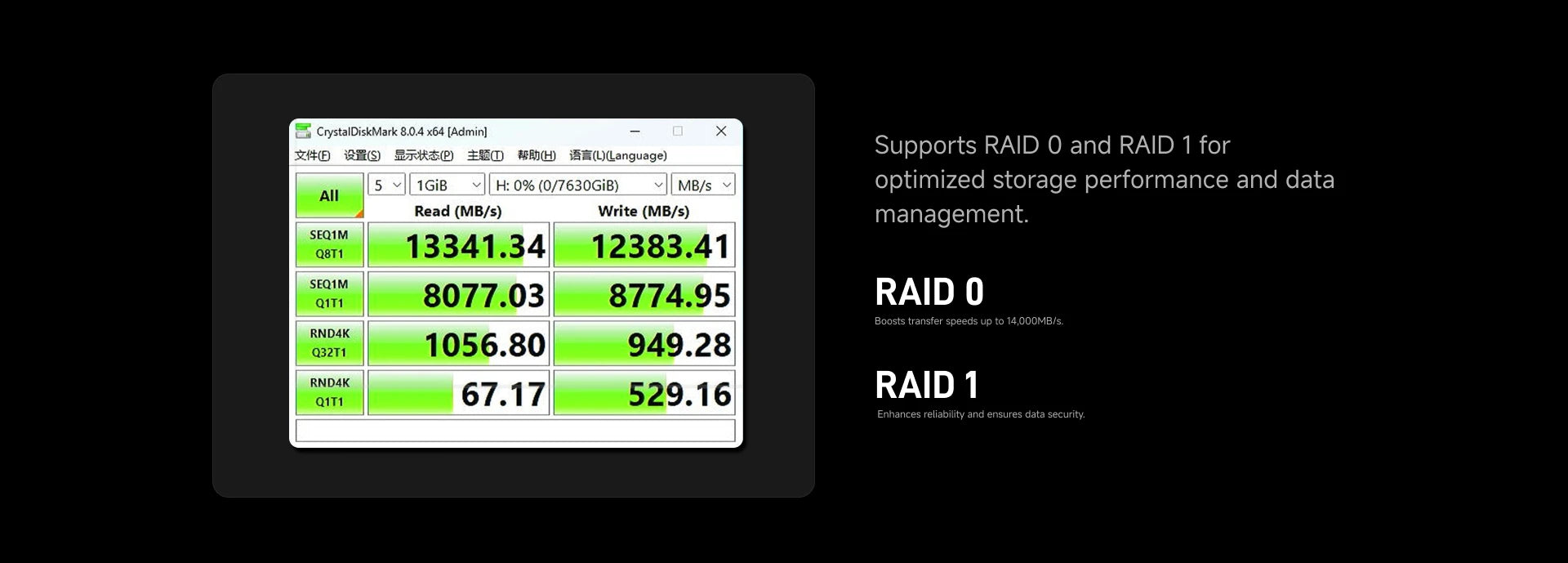

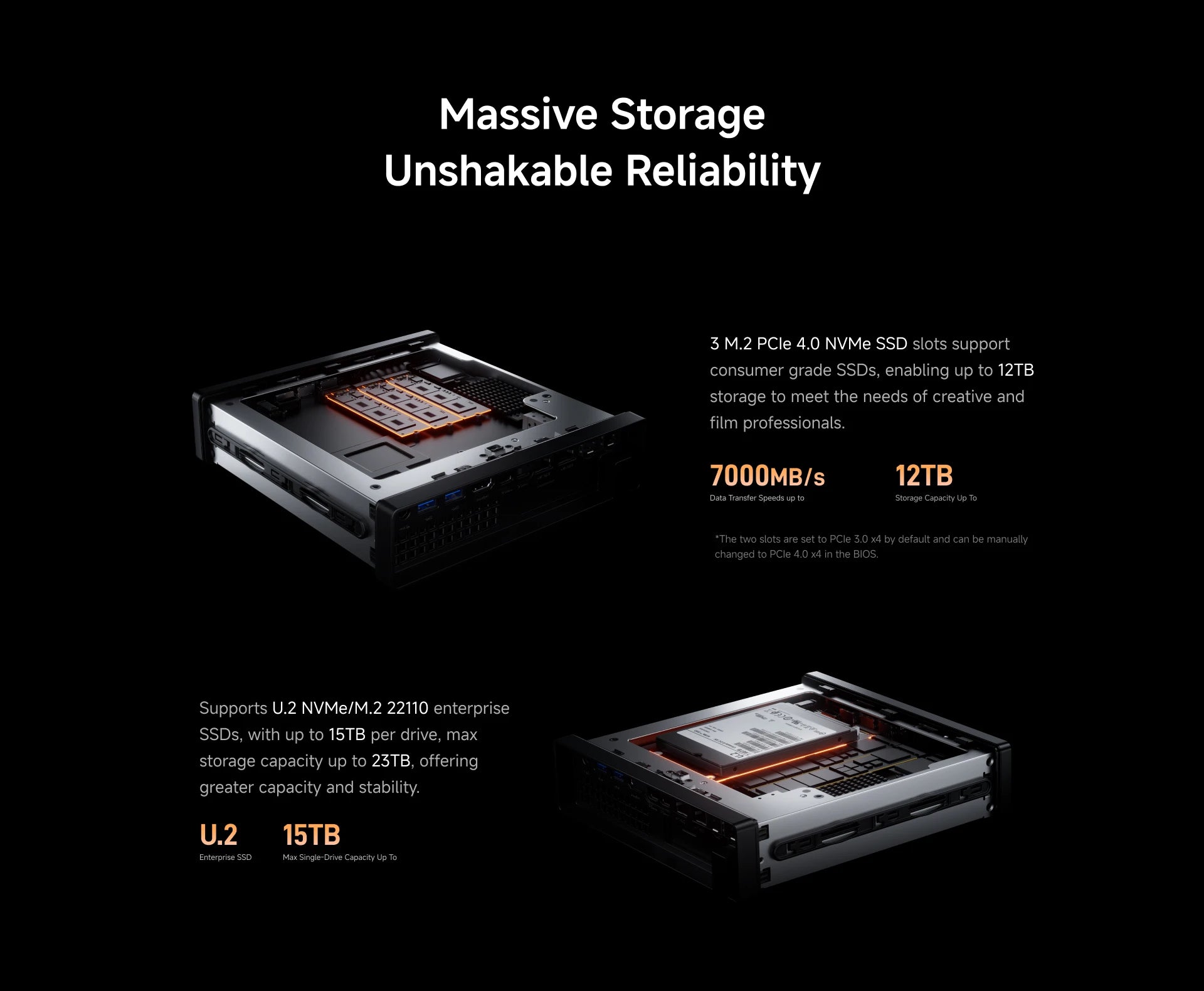

Storage: M.2 2280/U.2NVME SSD *1 (Up to 15TB/7mm thick U.2 SSD)(PCIe 4.0 x4)(OnBoard);M.2 2280/22110NVME/SATA SSD *2(Up to 4TB)(PCIe 4.0x4)(OnBoard)

Type: Mini Desktop,Mini PC

Use: Household

Video Output: HDMI2.1 x1(Up to 8K@60Hz);Type-C(Alt DP2.0) x2(Up to 8K@60Hz/4K@144Hz)

Wireless Connectivity: M.2 2230 E-Key (Wi-Fi 6E & Bluetooth 5.2)
